SM-L300

Image result for sml300

Image result for bluetooth 4.0

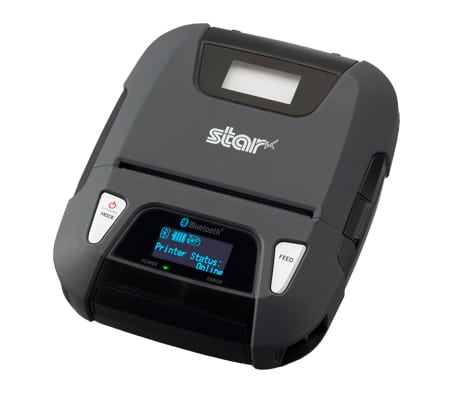

Compact 80mm Mobile Bluetooth Receipt and Label Printer Wireless

   Compact and reliable mobile receipt and label printer from Star for POS and logistics applications. The easy-to-use SM-L300 with OLED display features Bluetooth 4.0 (BLE) connectivity as well as Classic Bluetooth allowing it to connect with multiple Apple iOS devices. This 80mm / 3 inch printer is useful for printing in-store / in-field receipts and reports on-the-go as well as printing variable width traditional & liner free re-stick labels for retail and logistics applications. It features reflective (black mark), transmissive and paper end sensors to accommodate fixed length receipts and standard labels as well as MAXStick repositionable adhesive technology, liner-free labels.

   Designed to work just as happily from a person’s belt as well as or from the 5V counter top cradle charger or the in-vehicle mount, this versatile printer with an unprecedented 41 hour battery life ticks all the mobility boxes and can simply be charged using a micro USB cable. Star’s WebPRNT Browser, simplifying direct printing from the web along with Star’s PassPRNT print data relaying application provides software support to match this sophisticated mobile printer for easy integration.  The SM-L300 mobile bluetooth printer is also compatible with Star Cloud Services and the AllReceipts Digital Receipting App.




  SM-L300 Printer Specifications
Print Method Direct Thermal Printing
Print Speed 65mm/sec.(70mm paper speed feed)
Print Width 40mm to 80mm
Print Resolution 203 dpi
Dimensions 119.1(W) x 150.8 (D) x 69.0 (H) mm
Weight 540g (with battery)
Battery Duration 41 hours with 5 minute print intervals
Battery DC7.4V Lithium-Ion Battery 2000mAh, USB charging
Power Voltage 7.4V
Paper Media Horizontal desktop / vertical with belt strap
Width 80mm wide (receipt / label printing)
Thickness / Weight

0.053 - 0.12mm/ Restick Max

0.086mm / Label: Max. 0.150mm

Roll Diameter 57mm-80mm max roll diameter
Interface Bluetooth v3.0/4.0 [BLE] & USB
Print Head Reliability 50km
Barcode CODE39/93/128, JAN/EAN8, JAN/EAN13, EAN128,
ITF, UPC-A, UPC-E, CODABAR(NW-7),PDF417,QR Code
GS1 Omnidirectional/Truncated/Limited/Expanded,
Stacked,Stacked Omnidirectional,Expanded Stacked,Composite Symbols
Drop Test 1.2m
Operating System Support iOS, Android, Windows
Magnetic Stripe Reader Standard MSR [ISO 1&2&3 Track and JIS_II]
Power Saving Stand-by
Character Support Cyrillic, Russian, Turkish, Greek, Japanese,
Persian, Latin 9 and others (upon request)
Included Battery Pack, Belt Clip,
Sample Roll, USB cable
Options Desktop Charging Cradle





SDK download : http://www.starmicronics.com/support/SDKDocumentation.aspx
